Alternatives to scattered photo drives: USB-C DAS in 2026

The QNAP TR-004 is the best starting point when a photo archive needs four removable drives and hardware RAID modes without becoming a network-storage project. A USB-C DAS is directly attached storage: it expands a Mac, PC, or compatible NAS over a cable, so its files stay under the host's normal file-system and backup workflow.

Photographers often accumulate single external disks until the catalogue, RAW originals, exports, and older jobs are hard to locate. A multi-bay enclosure creates a more deliberate place for those disks. It can expose several volumes independently, combine selected drives into a RAID set, or provide room to expand an existing collection. It does not provide the remote access or self-contained applications of a NAS, and it must remain connected to a host to work.

The three products here deliberately make different compromises. QNAP's TR-004 has four 3.5-inch SATA bays, USB 3.2 Gen 1 Type-C, and hardware RAID configuration choices. TerraMaster's D5-300C provides five bays and its distinctive 2+3 arrangement, where two bays can be a RAID 0 or RAID 1 pair while three remain independent. Sabrent's DS-SC4B is a tray-less four-bay USB 3.2 Type-C dock designed to present drives independently, with individual switches and no built-in RAID. Choosing between them begins with the recovery plan, not the largest capacity figure.

USB-C DAS alternatives for photo backup: choose the layout first

Before buying drives, decide whether each bay will hold an independent archive, a mirrored current-project pair, or members of a striped set. RAID 1 can keep a second copy on another drive in the same enclosure, but it cannot protect against accidental deletion, file corruption, theft, power damage, or a mistaken RAID reconfiguration. RAID 0 can improve aggregate speed or capacity, but one failed member loses the set. For many photo libraries, independent volumes plus an external backup are simpler to understand.

Connection bandwidth also needs perspective. QNAP TR-004 uses USB 3.2 Gen 1 Type-C, while the Sabrent specifies USB 3.2 Type-C at up to 10 Gb/s. Those links are shared by all attached drives. Four or five hard drives can be excellent for archive capacity, yet they will not deliver each drive's separate peak speed at once. For large ingest jobs, copy to fast working storage first if necessary, then archive to the DAS after confirming the job.

QNAP TR-004: hardware-RAID alternative

Best hardware-RAID alternative

QNAP TR-004

The QNAP TR-004 suits a photographer who wants a tidy four-drive archive with RAID choices handled by the enclosure rather than a server operating system. QNAP specifies four 3.5-inch SATA bays, USB 3.2 Gen 1 Type-C connectivity, and hardware RAID modes selected on the unit. It can be connected directly to a PC or Mac and can also expand compatible QNAP NAS capacity. That flexibility earns its badge: a local photo archive can begin on a workstation and later fit into a more structured storage setup without turning the enclosure into a network appliance today. The limitation is that RAID planning still needs care. QNAP advises connecting the enclosure directly, not through a hub, and a four-bay RAID box remains a single physical location. Use it for organised local storage with a separate backup, not as permission to keep only one copy.

Check price on Amazon

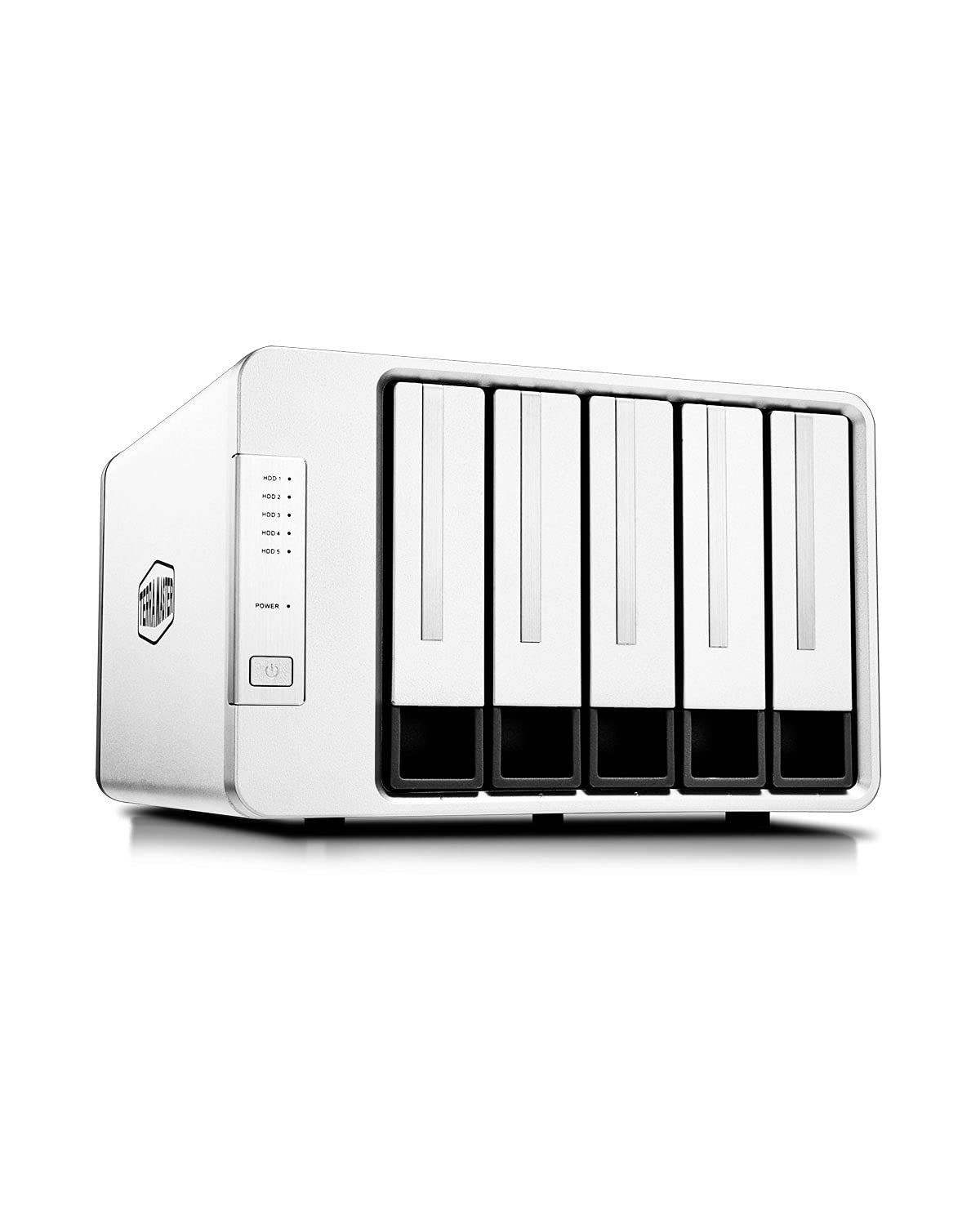

TerraMaster D5-300C: capacity-expansion alternative

Best capacity-expansion alternative

TerraMaster D5-300C

The TerraMaster D5-300C is the best match when a photo archive has outgrown four disks and you want a simple mixed layout rather than a uniform RAID plan. It is a five-bay diskless USB Type-C enclosure supporting RAID 0, RAID 1, single-drive operation, and a 2+3 mode. In that mode, two bays can serve as a RAID pair while the other three remain separate disks. That is useful for keeping an active catalogue mirror apart from older yearly archives. It receives the capacity-expansion badge because the fifth bay provides a meaningful organisational advantage without forcing all drives into one array. Its limitation is equally practical: its USB 3.1 Gen 1 link is an archive connection, not a promise of five-drive SSD performance, and the 2+3 arrangement must be documented so future recovery does not rely on memory.

Check price on Amazon

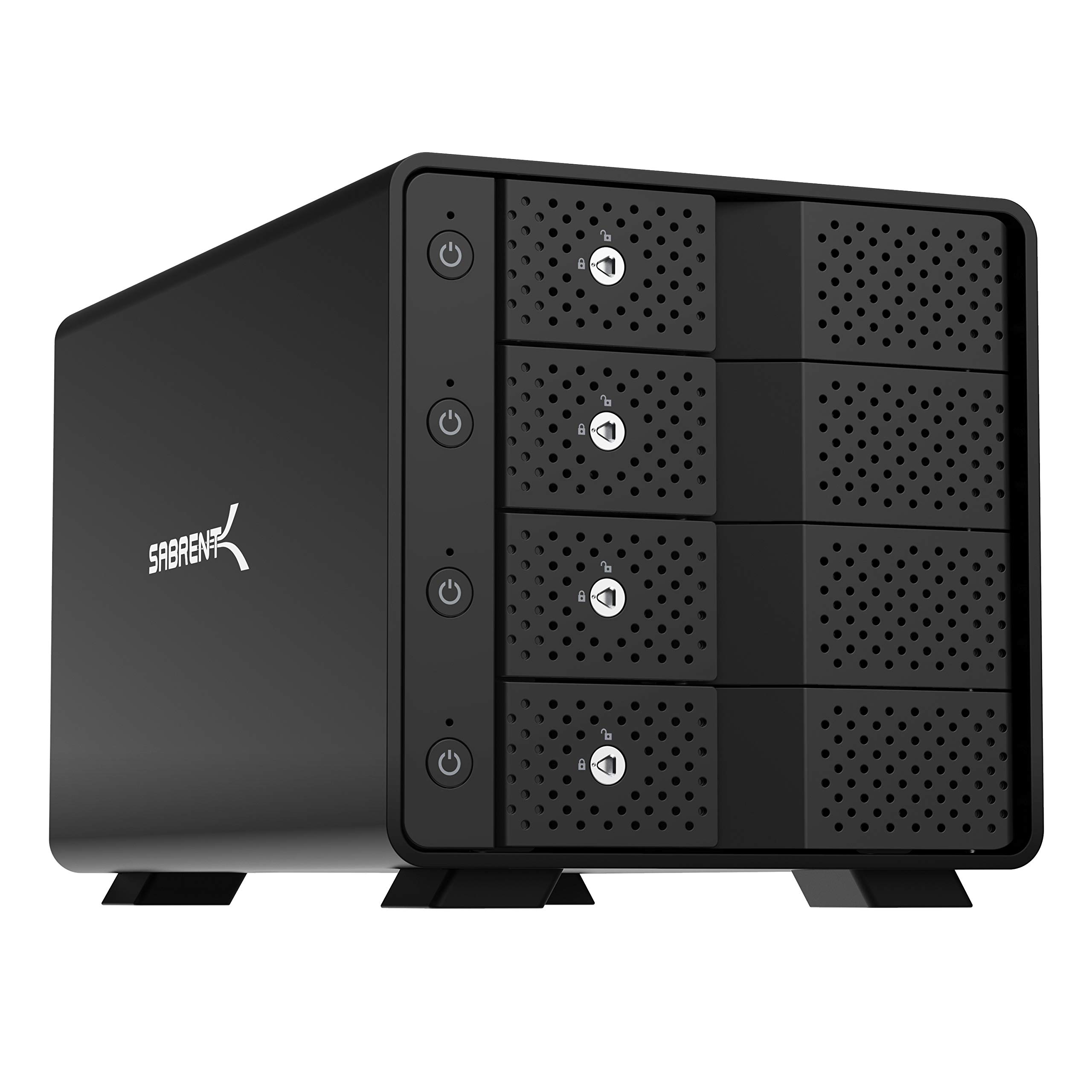

Sabrent DS-SC4B: independent-drive alternative

Best independent-drive alternative

Sabrent DS-SC4B

The Sabrent DS-SC4B is for the photographer who values visibility and independent disks over enclosure-managed RAID. It has four tray-less 3.5-inch SATA bays, a USB 3.2 Type-C connection specified up to 10 Gb/s, a 90 mm cooling fan, four separate power switches, and hot-swap support. Sabrent explicitly states that the unit does not provide RAID itself. That earns the independent-drive badge because each archive disk can retain a clear job, such as current work, last year's jobs, or a rotating backup, without being hidden inside a proprietary volume. The tradeoff is that redundancy becomes the user's responsibility. You must manage mirrored copies with the operating system or backup software, and hot-swapping is not a reason to remove a disk before it has been safely unmounted and the activity light has settled.

Check price on Amazon

A safer photo-archive routine

Name volumes by purpose rather than by brand. For example, use one current-work volume, one completed-years volume, and one backup destination, then record which physical disk corresponds to each name. Copy a completed job, compare file counts, open representative RAW files, and only then allow cards to be reused. Test a restore from the backup drive before the archive contains irreplaceable work.

The TR-004 is the most rounded pick for hardware RAID flexibility. The D5-300C is the better answer for a larger mixed archive because five bays and 2+3 can separate current redundancy from independent history. The DS-SC4B is ideal when independently visible drives are more useful than RAID. In every case, use a direct host connection, an uninterruptible power approach where appropriate, and a separate backup that does not live in the same box.

Frequently asked questions

Is a USB-C DAS the same as a NAS?

No. A DAS connects directly to one host through USB, while a NAS is a storage computer accessed over a network. A DAS is often simpler for a single editing workstation and does not need network administration. It also means the host must be on and connected for the archive to be available.

Does RAID make a photo archive a backup?

No. A mirror can help after a single drive failure, but it can also duplicate deletion, corruption, malware, or an incorrect configuration. Keep another verified copy on separate storage, ideally in another place. Treat RAID as availability or fault tolerance, not as a replacement for the backup process.

Can different-size drives be used in these enclosures?

They can be used as independent volumes, but an array normally uses capacity according to its smallest participating drive. Check each enclosure's documentation before changing modes, and do not assume a RAID layout can be changed without moving data first. Start with a written layout and a current backup.

Prices and availability are accurate at publication and can change.
